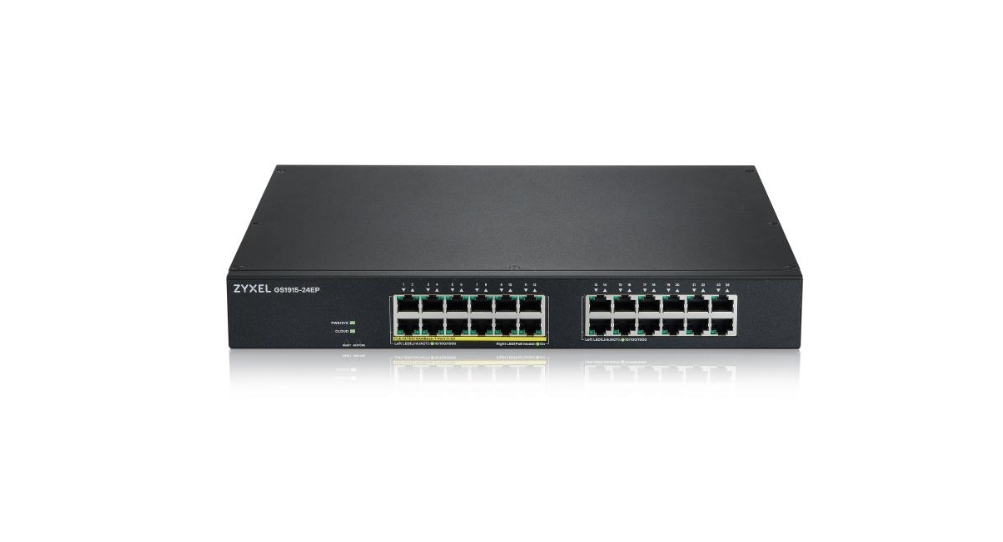

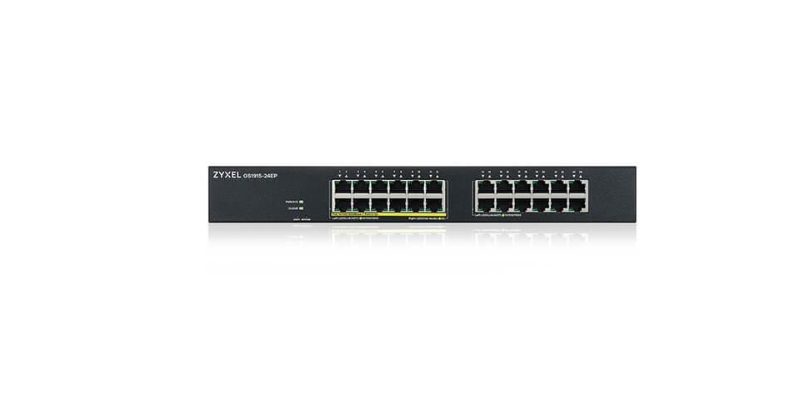

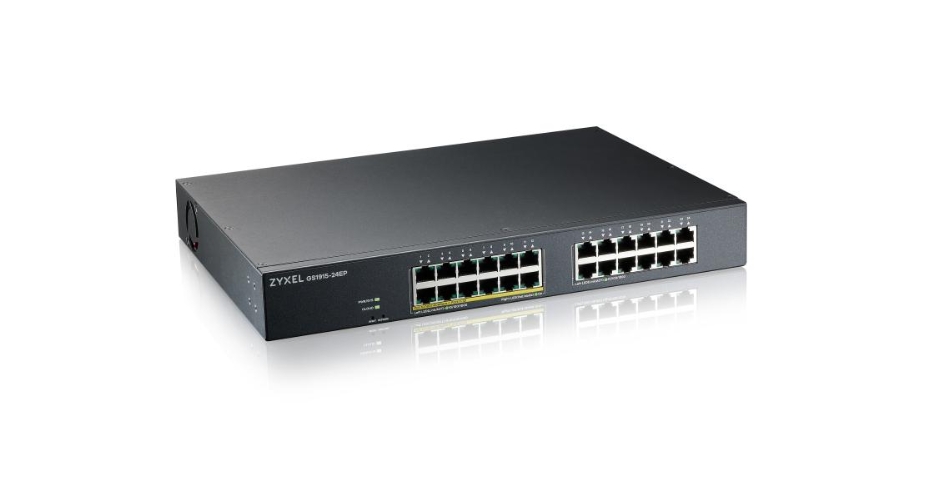

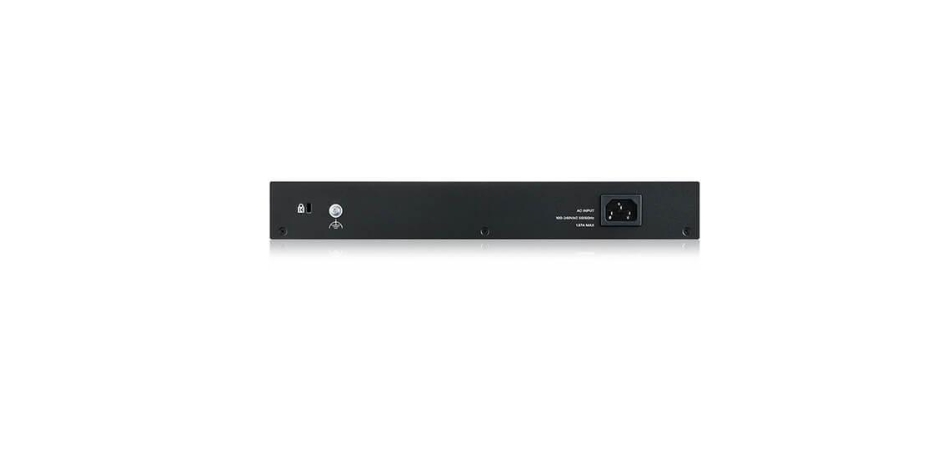

ZYXEL GS1915-24EP 24GB HY POE NEBULA SW (GS1915-24EP-EU0101F)
Specificatii
Data transmission
Jumbo frames support
Yes
Jumbo frames
9000
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Forwarding rate
35.7 Mpps
Ethernet LAN features
Ethernet LAN data rates
100,1000 Mbit/s
Management features
Quality of Service (QoS) support
Yes
Web-based management
Yes
Switch type
Managed
Switch layer
L2
Cloud-managed
Yes
MIB support
Y
Network
Virtual LAN features
Port-based VLAN
10G support
No
Broadcast storm control
Yes
Spanning tree protocol
Yes
Multicast support
Yes
Flow control support
Yes
VLAN support
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Ethernet LAN data rates
100,1000 Mbit/s
Packaging data
Package width
389 mm
Package height
79 mm
Package depth
337 mm
Package weight
3.87 kg
Ports & interfaces
Power over Ethernet (PoE) ports quantity
12
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity
12
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE)
Yes
Security
DHCP features
DHCP relay, DHCP client
Security algorithms
HTTPS, SSH-2, SSL/TLS, SHA-2
MAC address table
8000 entries
SSH/SSL support
Yes
Loop protection
Yes
Password protection
Yes
IGMP snooping
Yes
Weight & dimensions
Depth
230 mm
Weight
2.48 kg
Width
330 mm
Height
44 mm
Design
Wall mountable
Yes
Product colour
Black
LED indicators
Yes
Number of fans
0 fan(s)
Rack mounting
Yes
Form factor
1U
Features
Product colour
Black
LED indicators
Yes
Flow control support
Yes
Ethernet LAN data rates
100,1000 Mbit/s
VLAN support
Yes
Quality of Service (QoS) support
Yes
Multicast features
Multicast support
Yes
Operational conditions
Operating temperature (T-T)
0 – 40 °C
Storage temperature (T-T)
-40 – 70 °C
Operating relative humidity (H-H)
10 – 95%
Heat dissipation
566 BTU/h
Performance
Fanless
Yes
MTBF (PoE)
768989 h
Power
Power over Ethernet (PoE)
Yes
Power supply included
Yes
AC input voltage
100 – 240 V
AC input frequency
50 – 60 Hz
Power source
AC
Power consumption (max)
166.1 W
Protocols
Management protocols
SNMP v1, v2c, v3
Ungrouped
Installed SFP+ modules quantity
0
Extra info
LAN-Port-Type
Gigabit
