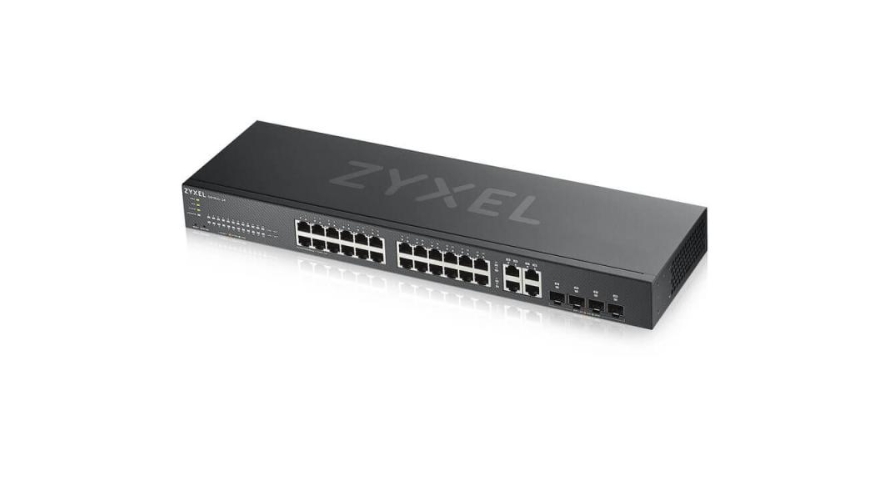

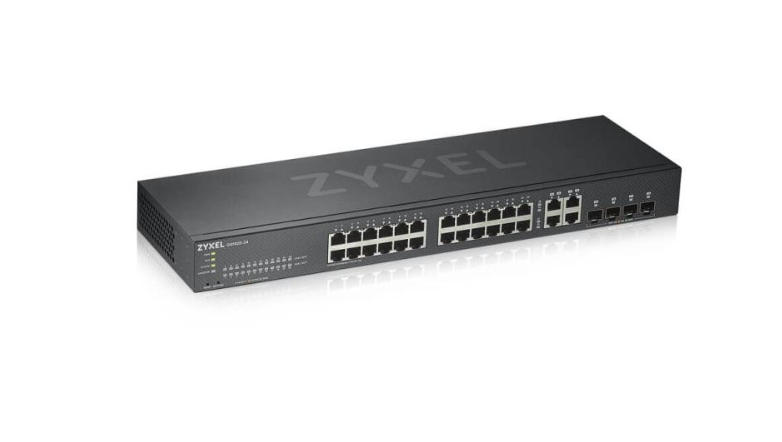

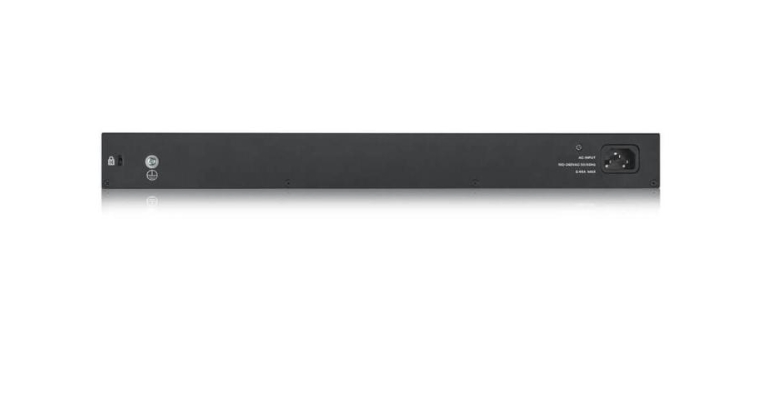

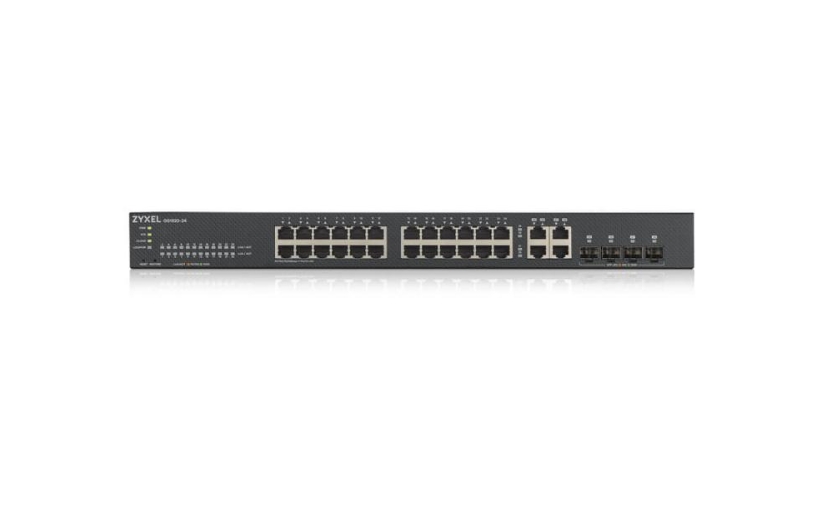

ZYXEL GS1920-24V2 24-PORT GBE SWITCH (GS1920-24V2-EU0101F)
Specificatii
Certificates
Certification
RoHS
Design
Safety
LVD, BSMI
Electromagnetic compatibility
FCC 15 A, CE A, BSMI EMC
LED indicators
Yes
Product colour
Black
Certification
RoHS
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Yes
Operational conditions
Heat dissipation
76.73 BTU/h
Storage temperature (T-T)
-40 – 70 °C
Operating relative humidity (H-H)
10 – 95%
Operating temperature (T-T)
0 – 50 °C
Storage relative humidity (H-H)
10 – 95%
Packaging content
Rack mount kit
Yes
Cables included
AC
Performance
Noise level
0 dB
Flash memory
32 MB
Internal memory
256 MB
Mean time between failures (MTBF)
911301 h
Power
Power over Ethernet (PoE)
No
AC input voltage
100 – 240 V
AC input frequency
50 – 60 Hz
Power consumption (max)
22.5 W
Security
MAC address filtering
Yes
Access Control List (ACL)
Yes
Password protection
Yes
Authentication
Guest VLAN, Port-based authentication
Authentication type
IEEE 802.1x, RADIUS
IGMP snooping
Yes
CPU defense
Yes
MAC address table
16000 entries
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
IP-MAC-Port binding
Yes
DHCP features
DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Security algorithms
802.1x RADIUS, SNMP, SNMPv3
Weight & dimensions
Width
441 mm
Weight
2.1 kg
Height
44 mm
Depth
131 mm
Data transmission
MAC address table
16000 entries
Packet buffer memory
1.5 MB
Switching capacity
56 Gbit/s
Forwarding rate
42 Mpps
Features
Quality of Service (QoS) support
Yes
VLAN support
Yes
Internal memory
256 MB
Product colour
Black
LED indicators
Yes
Certification
RoHS
Flash memory
32 MB
Flow control support
Yes
Rate limiting
Yes
Mean time between failures (MTBF)
911301 h
Management features
System event log
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
ARP inspection
Yes
Network
Multicast support
Yes
Rate limiting
Yes
Flow control support
Yes
10G support
No
Spanning tree protocol
Yes
Power over Ethernet (PoE)
No
VLAN support
Yes
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Packaging data
Package weight
2.91 kg
Package depth
214 mm
Package width
558 mm
Package height
79 mm
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
24
Fiber optic connector
SFP+
Power over Ethernet (PoE)
No
Ungrouped
Installed SFP+ modules quantity
0
Extra info
LAN-Port-Type
Gigabit
