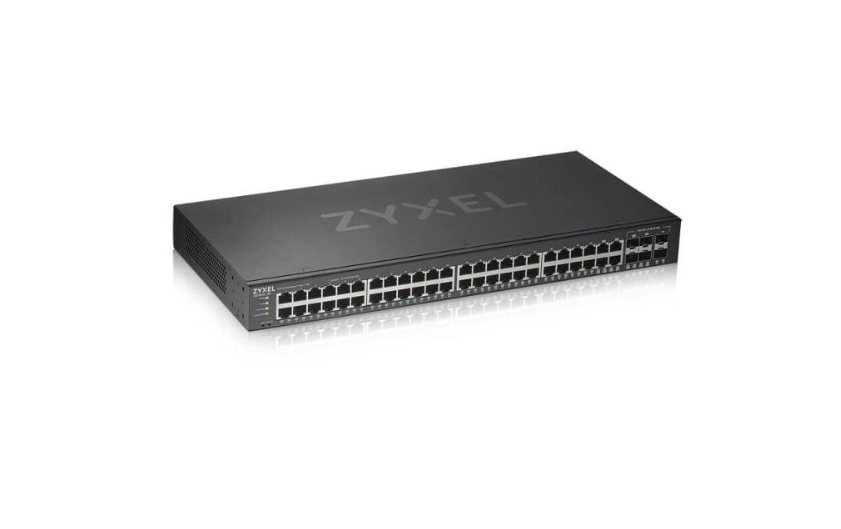

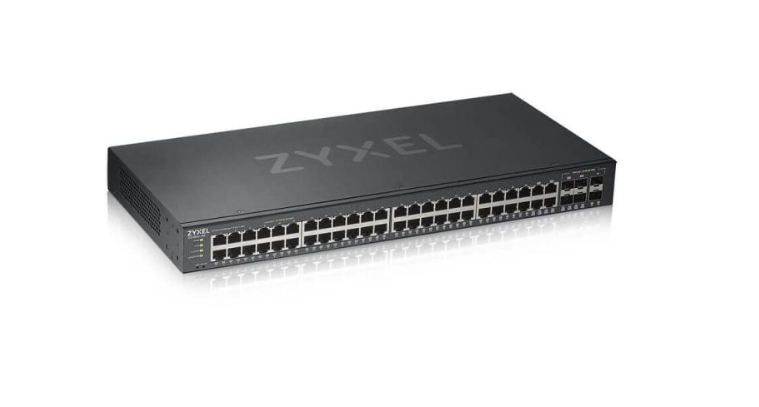

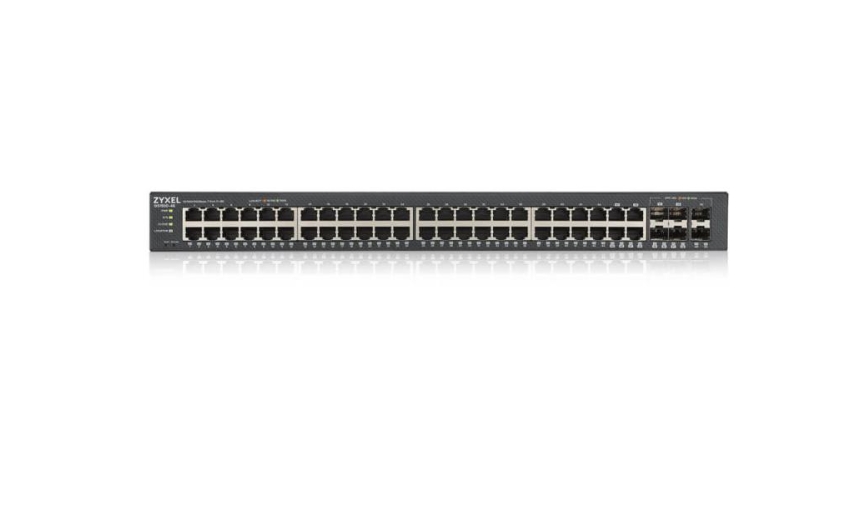

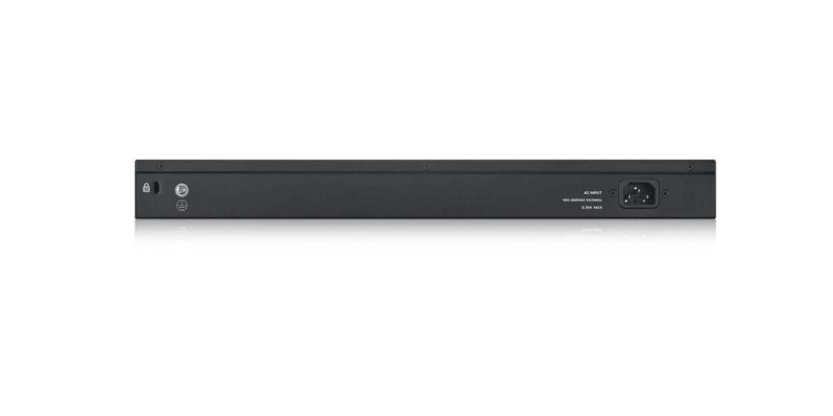

ZYXEL GS1920-48V2 48PORT GBE SWITCH (GS1920-48V2-EU0101F)
Specificatii
Certificates
Certification
RoHS
Design
Safety
LVD, BSMI
Electromagnetic compatibility
FCC 15 A, CE A, BSMI EMC
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Certification
RoHS
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Yes
Operational conditions
Heat dissipation
125.83 BTU/h
Operating relative humidity (H-H)
10 – 95%
Operating temperature (T-T)
0 – 50 °C
Storage temperature (T-T)
-40 – 70 °C
Storage relative humidity (H-H)
10 – 95%
Packaging content
Rack mount kit
Yes
Cables included
AC
Performance
Noise level
26 dB
Mean time between failures (MTBF)
672235 h
Internal memory
256 MB
Flash memory
32 MB
Power
Power consumption (max)
36.9 W
AC input voltage
100 – 240 V
AC input frequency
50 – 60 Hz
Power over Ethernet (PoE)
No
Security
MAC address filtering
Yes
Access Control List (ACL)
Yes
Password protection
Yes
IGMP snooping
Yes
Authentication
Guest VLAN, Port-based authentication
Authentication type
IEEE 802.1x, RADIUS
IP-MAC-Port binding
Yes
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
DHCP features
DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Security algorithms
802.1x RADIUS, SNMP, SNMPv3
CPU defense
Yes
MAC address table
16000 entries
Weight & dimensions
Depth
220 mm
Height
44.5 mm
Weight
2.8 kg
Width
440 mm
Data transmission
MAC address table
16000 entries
Packet buffer memory
1.5 MB
Switching capacity
100 Gbit/s
Forwarding rate
7.4 Mpps
Features
Quality of Service (QoS) support
Yes
VLAN support
Yes
Internal memory
256 MB
LED indicators
Yes
Product colour
Black
Certification
RoHS
Flash memory
32 MB
Flow control support
Yes
Rate limiting
Yes
Mean time between failures (MTBF)
672235 h
Management features
System event log
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
ARP inspection
Yes
Network
Multicast support
Yes
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Rate limiting
Yes
Power over Ethernet (PoE)
No
10G support
No
Spanning tree protocol
Yes
VLAN support
Yes
Flow control support
Yes
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Packaging data
Package weight
3.97 kg
Package height
90 mm
Package depth
289 mm
Package width
496 mm
Ports & interfaces
Combo SFP ports quantity
4
Fiber optic connector
SFP+
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
44
SFP+ module slots quantity
2
Power over Ethernet (PoE)
No
Ungrouped
Installed SFP+ modules quantity
0
SFP module slots quantity
2
SFP+ module slots quantity
2
Extra info
LAN-Port-Type
Gigabit
