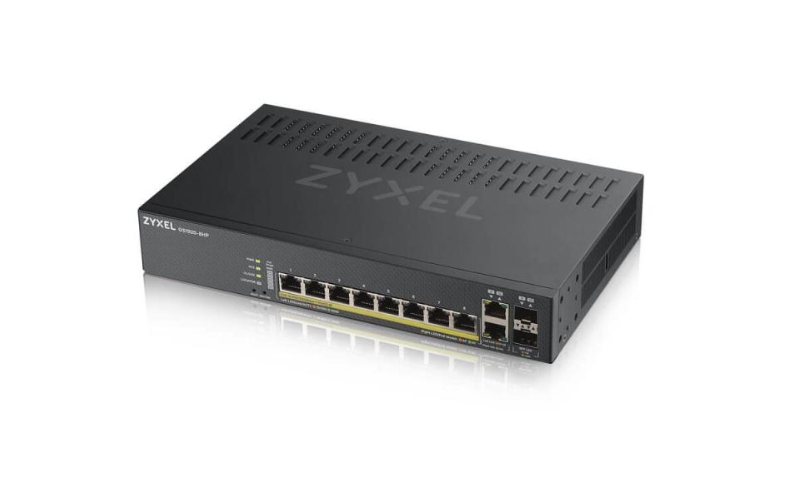

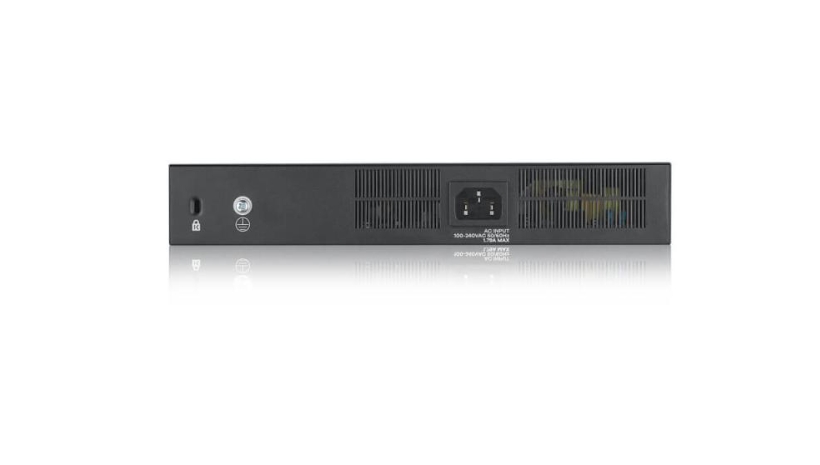

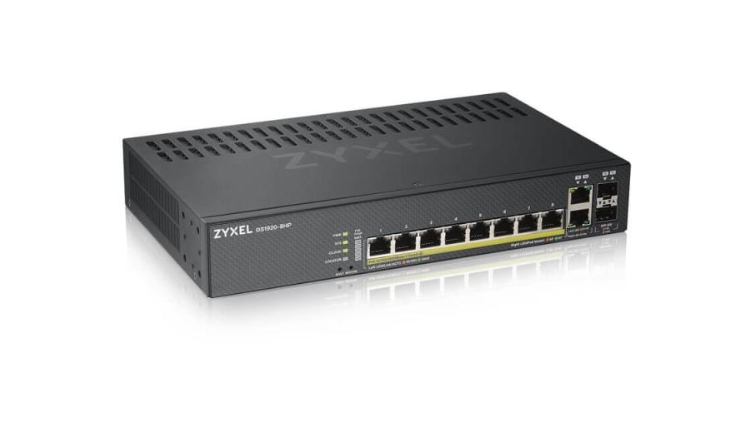

ZYXEL GS1920-8HPV2 8 PORT GBE POE SWITCH (GS1920-8HPV2-EU0101F)
Specificatii
Certificates
Certification
RoHS
Design
Safety
LVD, BSMI
Electromagnetic compatibility
FCC 15 A, CE A, BSMI EMC
Rack mounting
No
Product colour
Black
Certification
RoHS
LED indicators
Yes
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Yes
Operational conditions
Heat dissipation
551.74 BTU/h
Operating relative humidity (H-H)
10 – 95%
Storage temperature (T-T)
-40 – 70 °C
Operating temperature (T-T)
0 – 50 °C
Storage relative humidity (H-H)
10 – 95%
Packaging content
Cables included
AC
Performance
Mean time between failures (MTBF)
513985 h
Noise level
0 dB
Flash memory
32 MB
Internal memory
256 MB
Power
Power over Ethernet (PoE)
Yes
AC input voltage
100 – 240 V
AC input frequency
50 – 60 Hz
Power consumption (max)
161.8 W
Security
IGMP snooping
Yes
CPU defense
Yes
IP-MAC-Port binding
Yes
Authentication
Guest VLAN, Port-based authentication
Authentication type
IEEE 802.1x, RADIUS
MAC address table
16000 entries
MAC address filtering
Yes
Access Control List (ACL)
Yes
Password protection
Yes
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
DHCP features
DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Security algorithms
802.1x RADIUS, SNMP, SNMPv3
Weight & dimensions
Depth
162 mm
Height
44 mm
Weight
1.9 kg
Width
267 mm
Data transmission
MAC address table
16000 entries
Packet buffer memory
1.5 MB
Switching capacity
20 Gbit/s
Forwarding rate
15 Mpps
Features
Quality of Service (QoS) support
Yes
VLAN support
Yes
LED indicators
Yes
Certification
RoHS
Product colour
Black
Internal memory
256 MB
Flow control support
Yes
Rate limiting
Yes
Flash memory
32 MB
Mean time between failures (MTBF)
513985 h
Management features
Quality of Service (QoS) support
Yes
System event log
Yes
Switch type
Managed
ARP inspection
Yes
Network
Multicast support
Yes
10G support
No
Spanning tree protocol
Yes
Rate limiting
Yes
Flow control support
Yes
VLAN support
Yes
Power over Ethernet (PoE)
Yes
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Packaging data
Package height
61 mm
Package depth
235 mm
Package width
375 mm
Package weight
2.73 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber optic connector
SFP+
Installed SFP+ modules quantity
0
Power over Ethernet (PoE) ports quantity
8
Combo SFP ports quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Ungrouped
Installed SFP+ modules quantity
0
Extra info
LAN-Port-Type
Gigabit
