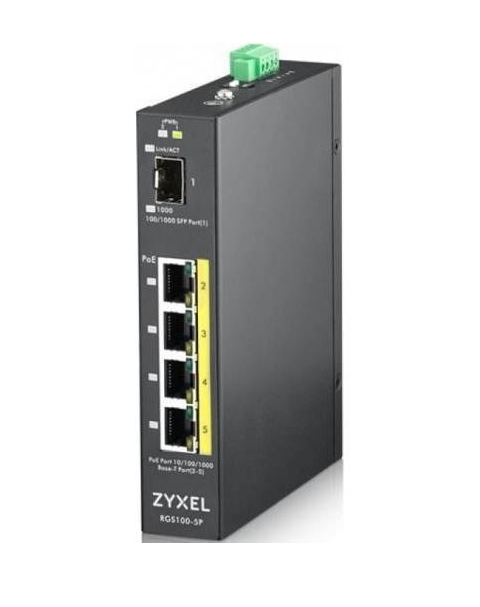

ZYXEL Switch RGS100-5P-ZZ0101F (RGS100-5P-ZZ0101F)
Specificatii
Data transmission
Jumbo frames support
Yes
Jumbo frames
9000
MAC address table
2000 entries
Store-and-forward
Yes
Switching capacity
10 Gbit/s
Packet buffer memory
0.25 MB
Throughput
7.44 Mpps
Features
Flow control support
Yes
Product colour
Black
Mean time between failures (MTBF)
568430 h
Management features
Switch layer
L2
Switch type
Unmanaged
Network
10G support
No
Multicast support
Yes
MAC address auto-learning supported
Yes
Auto MDI/MDI-X
Yes
Flow control support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation
Yes
Full duplex
Yes
Power over Ethernet (PoE)
Yes
Optical fiber
Transmission distance (max)
40 km
Fiber ethernet cabling technology
1000BASE-X
Packaging data
Package height
205 mm
Package weight
700 g
Package width
70 mm
Wall mounting kit
Yes
Package depth
177.8 mm
Ports & interfaces
Fiber optic connector
SFP+
SFP module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
0
SFP+ module slots quantity
1
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 W
Ungrouped
SFP+ module slots quantity
1
Installed SFP+ modules quantity
0
SFP module slots quantity
1
Design
DIN rail mounting
Yes
International Protection (IP) code
IP30
Housing material
Metal
Product colour
Black
Wall mountable
Yes
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Yes
Operational conditions
Storage temperature (T-T)
-40 – 85 °C
Storage relative humidity (H-H)
5 – 90%
Operating relative humidity (H-H)
5 – 95%
Operating temperature (T-T)
-40 – 75 °C
Heat dissipation
42625 BTU/h
Packaging content
Rack mount kit
Yes
Performance
Mean time between failures (MTBF)
568430 h
Plug and Play
Yes
Power
DC input voltage
12 – 58 V
Input voltage
12 – 58 V
Power consumption (max)
125 W
Power protection features
Short circuit
Power over Ethernet (PoE)
Yes
Security
MAC address table
2000 entries
Weight & dimensions
Height
139 mm
Weight
500 g
Width
29.1 mm
Depth
107.3 mm
