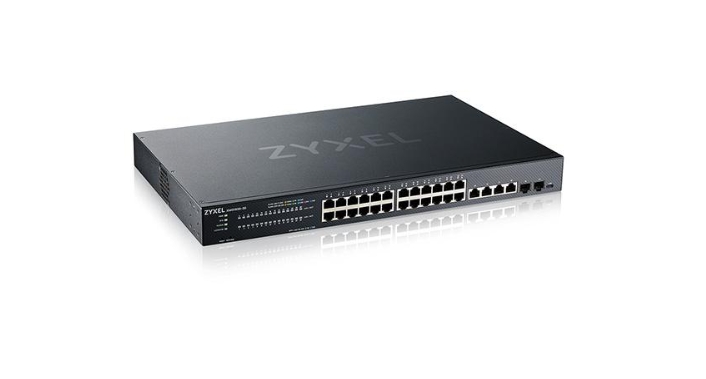

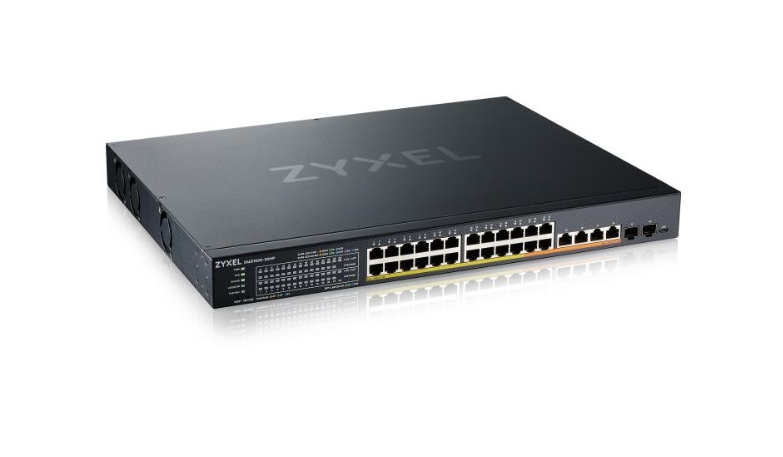

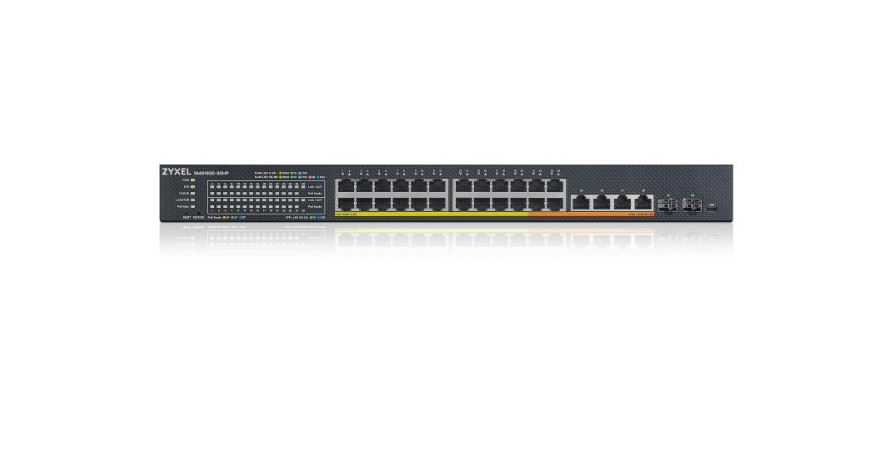

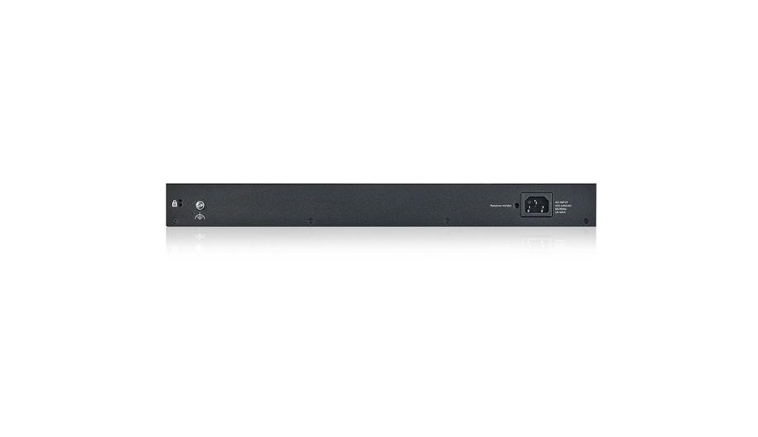

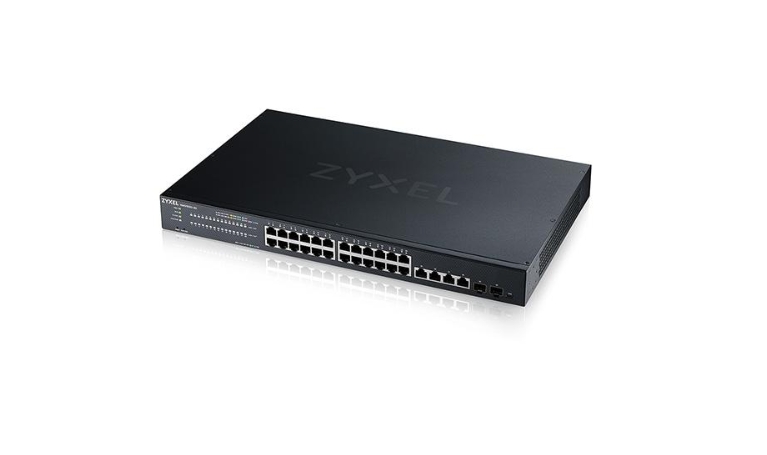

ZYXEL XMG1930-30HP, 24-port (XMG1930-30HP-ZZ0101F)
Specificatii
Data transmission
Jumbo frames support
Yes
Static route
Yes
MAC address table
16000 entries
Switching capacity
240 Gbit/s
Forwarding rate
178.5 Mpps
Jumbo frames
12000
Ethernet LAN features
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Management features
Quality of Service (QoS) support
Yes
Web-based management
Yes
Switch type
Managed
Reset button
Yes
Cloud-managed
Yes
MIB support
Y
Switch layer
L3
Configuring Location Settings (CLI)
Yes
Network
Multicast support
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Number of VLANs
4000
Power over Ethernet (PoE)
Yes
10G support
Yes
Static route
Yes
VLAN support
Yes
Rate limiting
Yes
Flow control support
Yes
Policy-based routing
Yes
Packaging content
Rack mount kit
Yes
Cables included
AC
Ports & interfaces
Power over Ethernet (PoE) ports quantity
28
Fiber optic connector
SFP+
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity
24
Installed SFP+ modules quantity
2
Power connector
AC-in jack
10G Ethernet (copper) ports quantity
4
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
28
Power over Ethernet plus (PoE+) ports quantity
20
Total Power over Ethernet (PoE) budget
700 W
Security
MAC address table
16000 entries
SSH/SSL support
Yes
Loop protection
Yes
DHCP features
DHCP client, DHCPv6 relay
IGMP snooping
Yes
MAC address filtering
Yes
Access Control List (ACL)
Yes
Weight & dimensions
Width
441 mm
Weight
4.85 kg
Depth
330 mm
Height
44 mm
Design
Rack mounting
Yes
Form factor
1U
LED indicators
Yes
Product colour
Black
Reset button
Yes
Features
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Rate limiting
Yes
Mean time between failures (MTBF)
587922.31 h
Product colour
Black
LED indicators
Yes
Quality of Service (QoS) support
Yes
Flow control support
Yes
VLAN support
Yes
Multicast features
Multicast support
Yes
Operational conditions
Storage relative humidity (H-H)
5 – 95%
Storage temperature (T-T)
-40 – 70 °C
Operating relative humidity (H-H)
5 – 95%
Operating temperature (T-T)
-20 – 50 °C
Heat dissipation
864.1 BTU/h
Performance
Mean time between failures (MTBF)
587922.31 h
Power
Power consumption (max)
864.1 W
Power source
AC
AC input voltage
100 – 240 V
Power supply included
Yes
Power over Ethernet (PoE)
Yes
AC input frequency
50 – 60 Hz
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Ungrouped
Installed SFP+ modules quantity
2
Extra info
LAN-Port-Type
Gigabit
