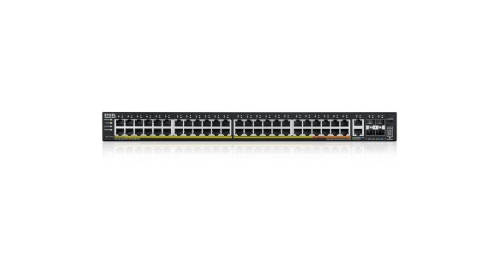

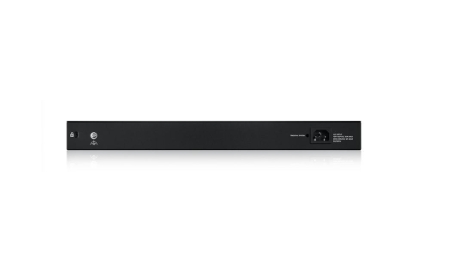

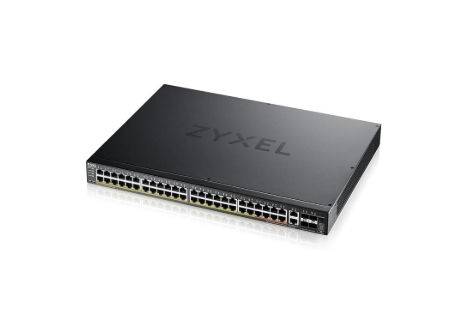

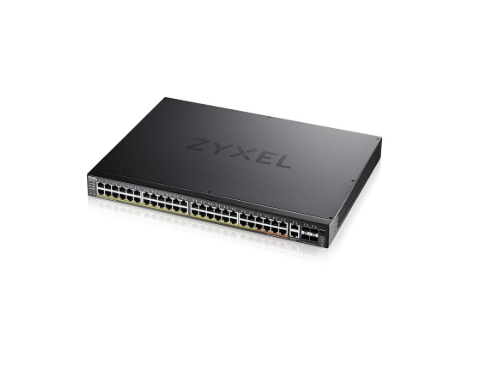

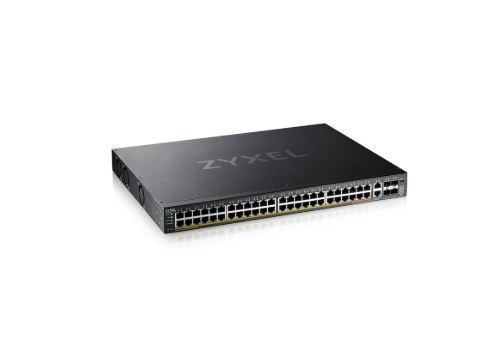

ZYXEL ZY XGS2220-54 48GBE 2x10mG 4x10G SW POE (XGS2220-54FP-EU0101F)
Specificatii
Data transmission
Jumbo frames support
Yes
Switching capacity
216 Gbit/s
Forwarding rate
161 Mpps
Packet buffer memory
2 MB
MAC address table
32000 entries
Features
Internal memory
1024 MB
Quality of Service (QoS) support
Yes
Flash memory
64 MB
Mean time between failures (MTBF)
298.735 h
Multicast features
Multicast Listener Discovery (MLD) snooping MLD v1/v2
Operational conditions
Operating temperature (T-T)
-20 – 50 °C
Operating relative humidity (H-H)
10 – 95%
Storage temperature (T-T)
-40 – 70 °C
Storage relative humidity (H-H)
10 – 90%
Heat dissipation
195.43 BTU/h
Ports & interfaces
Installed SFP+ modules quantity
4
10G Ethernet (copper) ports quantity
2
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity
50
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
50
Total Power over Ethernet (PoE) budget
960 W
Security
DHCP features
DHCP relay, DHCP server
IGMP proxy
Yes
IGMP snooping
Yes
MAC address table
32000 entries
Authentication type
IEEE 802.1x, RADIUS, TACACS+
Weight & dimensions
Width
441 mm
Weight
5 kg
Depth
330 mm
Height
44 mm
