TS-i410X-8G
Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz, 8 GB on board (non-expandable)
Quad cores up to 3.0 GHz with AES-NI accelerated encryption
The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications.
Build a high-speed 10GbE network environment
The TS-i410X provides two 10GBASE-T (10G/5G/2.5G/1G) ports. With QNAP’s comprehensive, budget-friendly storage and networking solutions you can easily and flexibly upgrade workplace or home networks to handle bandwidth-hungry applications.
| CPU | Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Floating Point Unit | |
| Encryption Engine | Â (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 8 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
|
| Maximum Memory | 8 GB on board (non-expandable) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 3.2 Gen 2 (10Gbps) Port | 4 |
| HDMI Output | 1, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Form Factor | Tower |

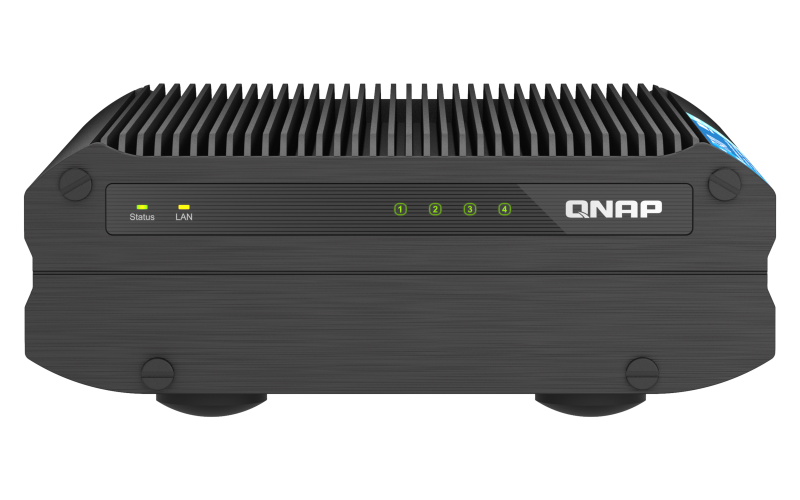

| LED Indicators | Power/Status, LAN, SSD 1-4 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 65 × 180 × 254 mm |
| Weight (Net) | 2.54 kg |
| Weight (Gross) | 3.73 kg |
| Operating Temperature | -40 – 70 °C (-40°F – 158°F) |
| Storage Temperature | -45 – 85°C (-49°F – 185°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |

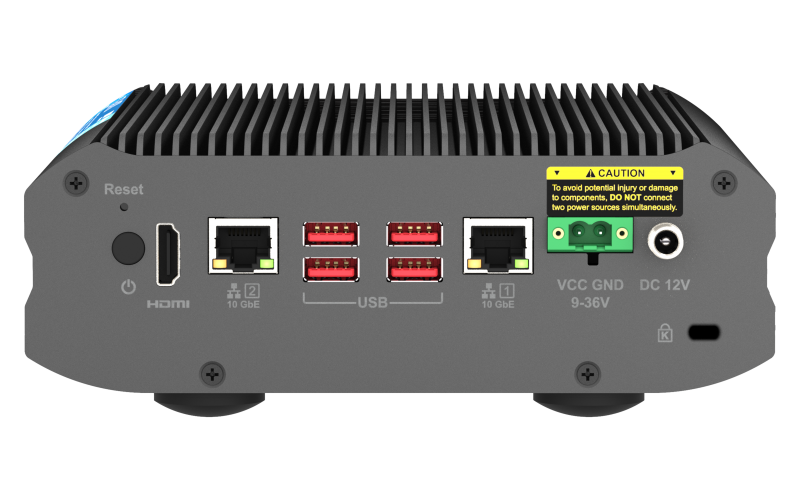

| Power Supply Unit | 1. External Power Adapter, 90W and above, AC 100-240V 2. 9-36V DC input To avoid potential personal injury or component damage, DO NOT plug in two power inputs simultaneously.
|
| Power Consumption: HDD Sleep Mode | 17.628 W |
| Power Consumption: Operating Mode, Typical | 25.592 W
Tested with drives fully populated.
|
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
