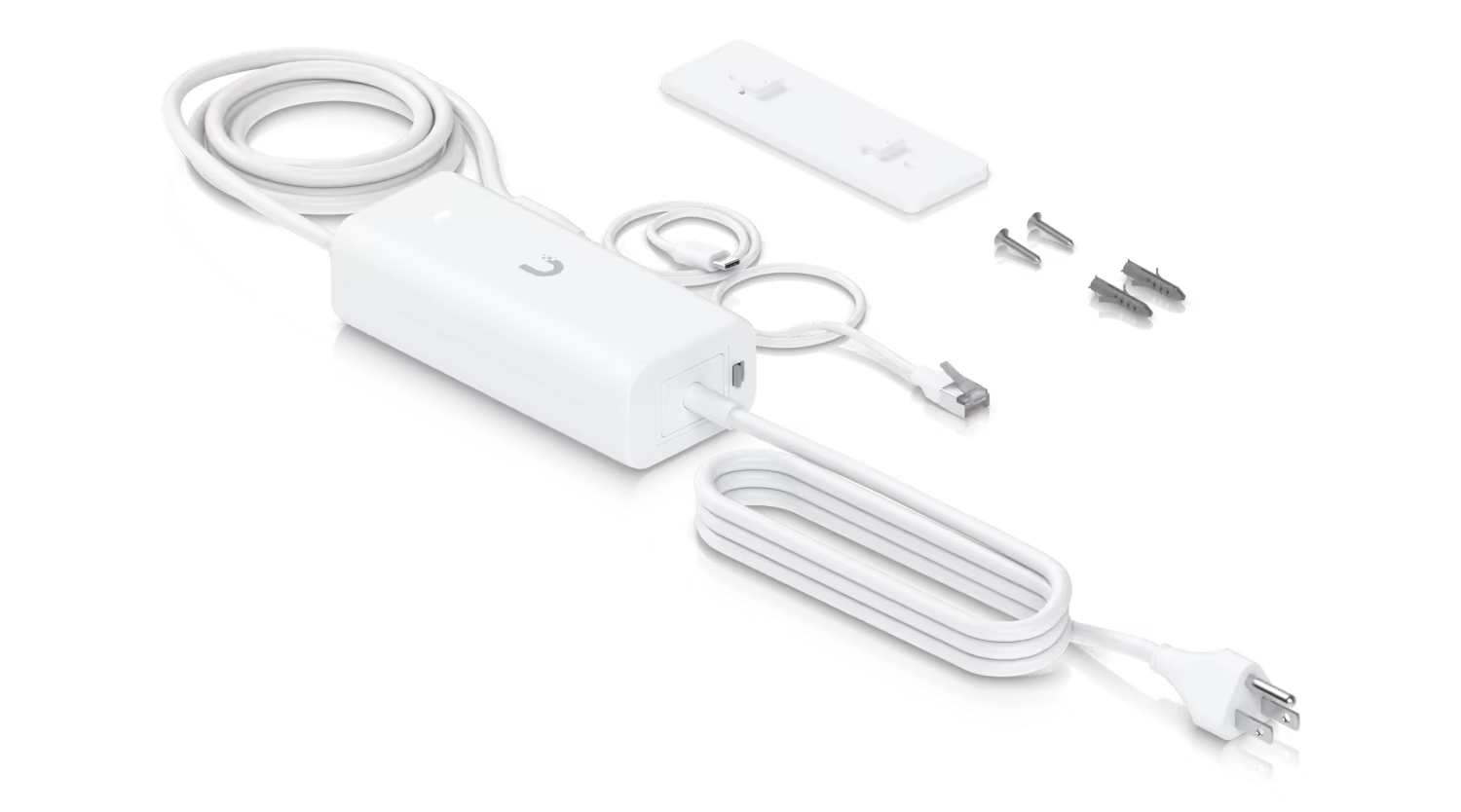

Ubiquiti UniFi PoE Integrated AC Adapter (UACC-PoE+-USBC)

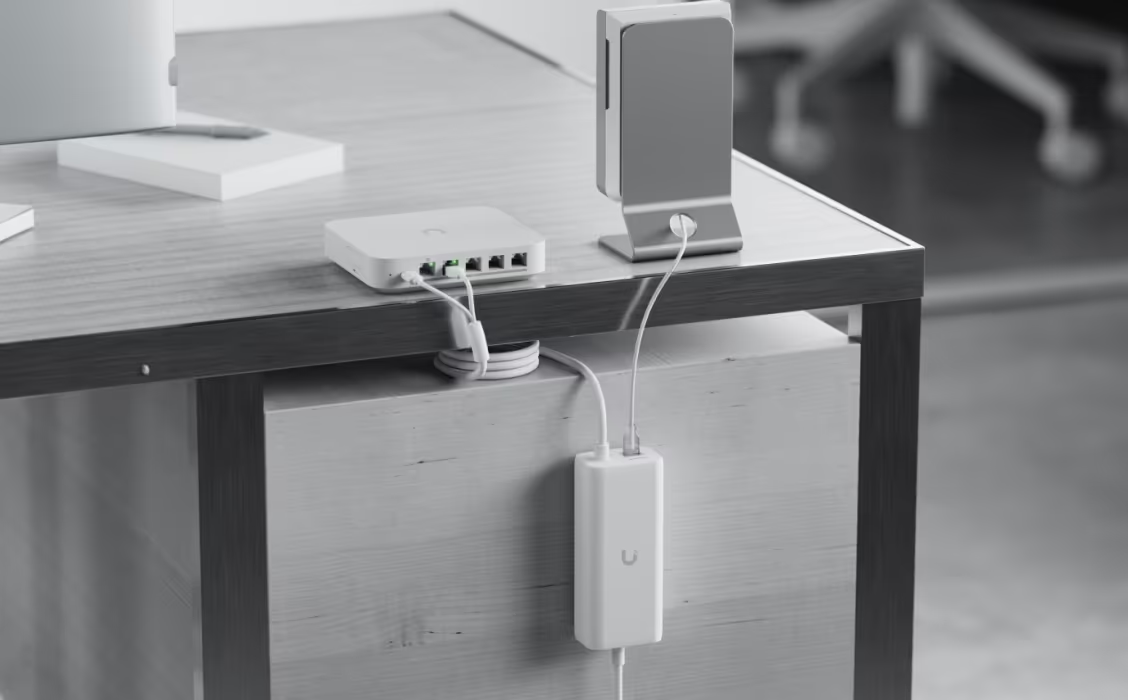

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.

Delivers up to 30W of PoE+

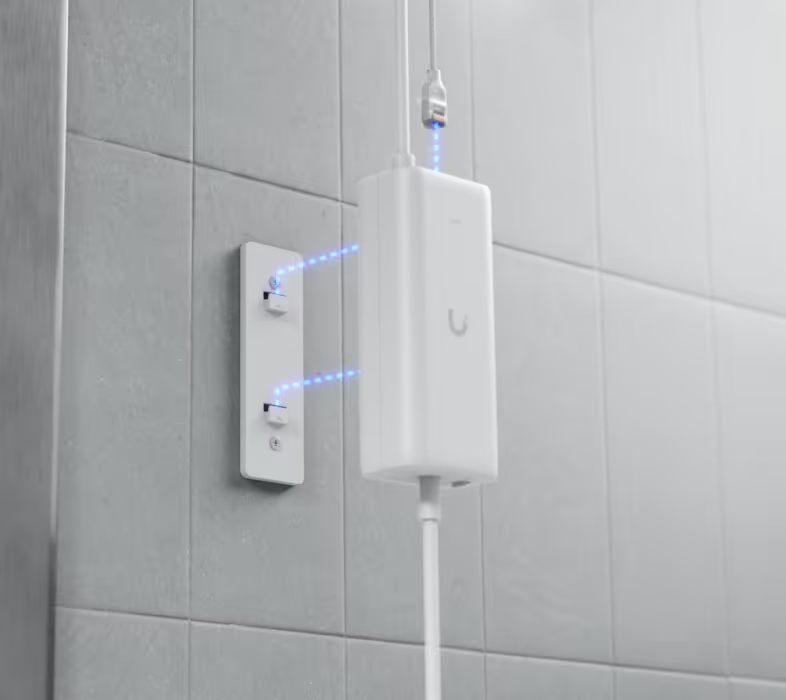

Supports wall mount, DIN rail and floating mount*

Lockable latch designed for power cord security

*DIN rail and floating mount sold separately

Compatibility:

UCG-Ultra

,

UCG-Max

,

UXG-Lite

,

UXG-Max

,

UX
SKU: UACC-PoE+-USBC Categorii: , , , ,
Dimensions 146 x 62 x 42 mm (5.7 x 2.4 x 1.7″)
Weight 358 g (12.6 oz)
Cable length Type-C/Ethernet: 150 cm (4.9 ft)
Power cord: 180 cm (5.9 ft)
Output voltage Type-C: 5V@ 5A
PoE+: 48V@ 0.65A
LAN activity indicator No
Gigabit LAN port Up to 10 GbE
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 1.5A max.
Inrush current 120A
Efficiency 82%
Output ripple 1% max.
Switching frequency 65 kHz
Line regulation ≤ 5%
Load regulation ≤ 5%
2-pair powering No
4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

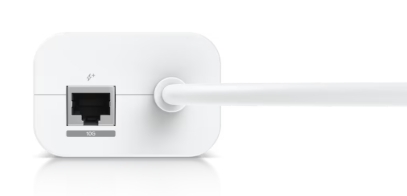

Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL, UKCA, CCC, KC, RoHS
